Digital Signage Boards Create Dynamic Menu for Retaurant
Digital restaurants signage boards make your menu becomes a flexible and dynamic display. They can show your business logo, name and promotion in many ways. It’s easy for your customer to take a view. Digital signage boards are more creative than led menu board, which can only display static poster
Technical Specifications of Restaurant Digital menu Boards
- Multi-touch: Infrared (support Capacity ) 10 point
- Resolution: 1920*1080（or 3840*2160）
- Brightness (typ)/(min): 300cd/m2
- Contrast: 1300:1
- Viewing angle: Up/under/left/right: 89/89/89/89
- Response time: 6ms
- CPU: RK3566, Cortex-A55, 1.8GHZ
- RAM: 2GB
- HDD: 16GB（Extensible）
- Network: Wifi, bluetooth, Extensibe 3G4G
- All port: USB×2, TF×1, RJ45×1, CDIN×1, HDMI×
- OS: Android 11 or other vision
- Language: Chinese, English, other languages
- Video formats: RM/RMVB, MKV, TS, FLV, AVI, VOB ，MOV, WMV, MP4
- Audio formats: MP3, WMA, WAV, AC3, FLAC
- Image formats BMP/PNG/GIF/JPEG
- Other: PDF, PPT, SWF, Text, Real-time data stream
- Lifetime: ≥50000h
- Working Temperature: 0-50℃
- Humidity Temperature: -20℃-60℃
- Working/Stay Humidity: 5%RH~90%RH
- Quality stand: CCC/ISO9001/PSE
Sizes Option Restaurant Digital Menu Boards
| Size | Body Size
(mm) |
Display Size
(mm) |
Net Weight
(kg) |
|---|---|---|---|
| 32 inch | 735*435*45.8 | 700.4*394.8 | 12.5 |
| 43 inch | 975*569*45.8 | 700.4*394.8 | 18.5 |
| 50 inch | 1109*644*45.8 | 1077.3*605.9 | 23.5 |
| 55 inch | 1252*726*45.8 | 1077.3*605.9 | 28.5 |
| 65 inch | 1466*846*48.6 | 1430*805 | 41 |
Features of Digital Menu Boards

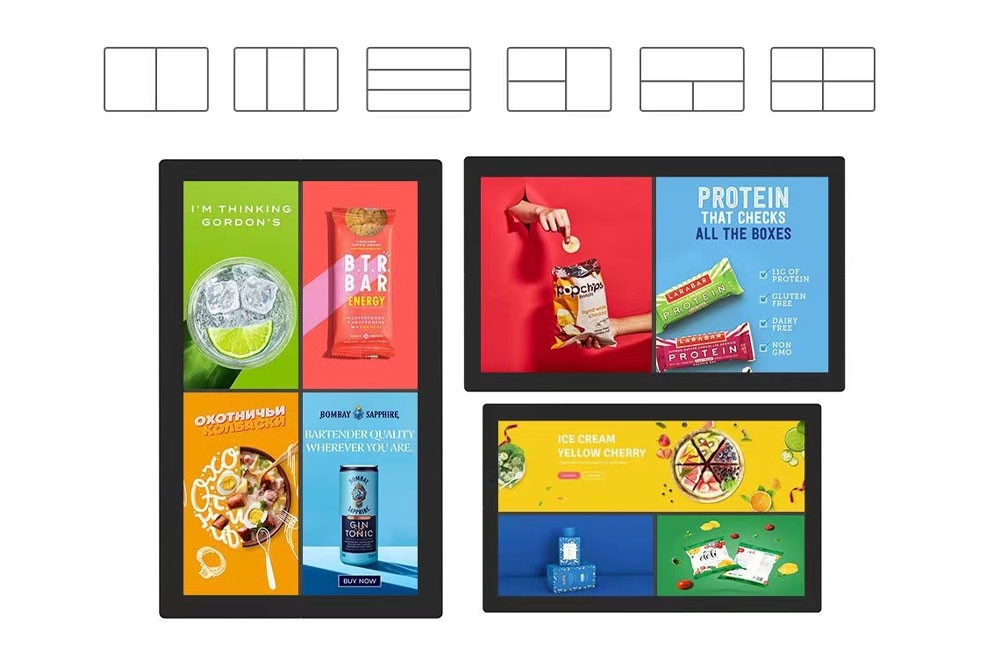

1, Splitting solution Menu Board for Restaurant
Menu digital board can slit to multiple display screen, each splitted screen can display video/pictures/poster/music individually and simultaneously.

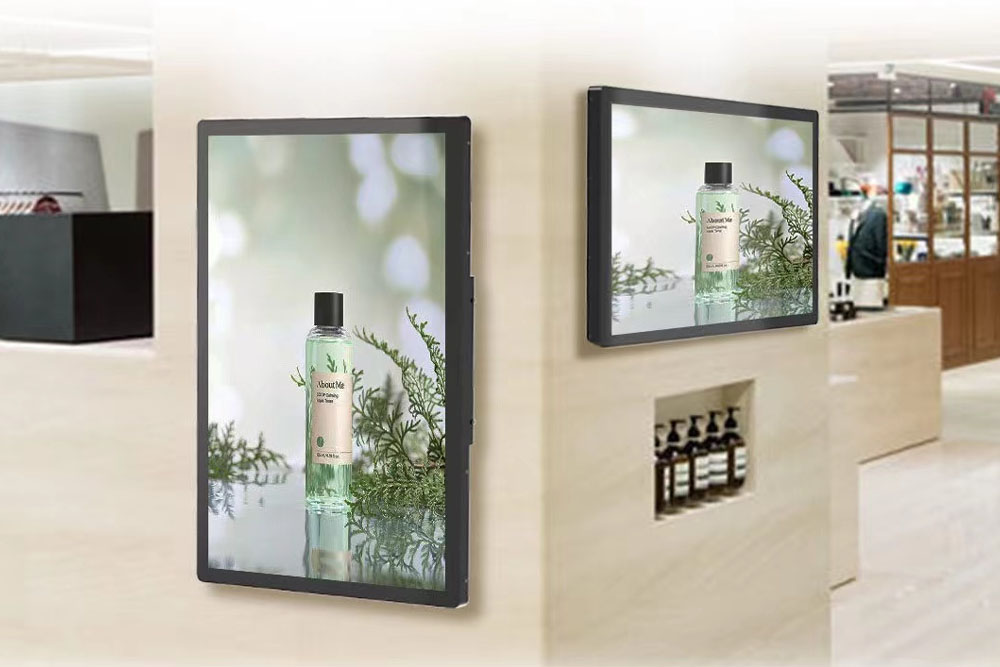

2, Vertical, Horizontal Display
Vertical and horizontal display methods for options to suit for various application scenarios.

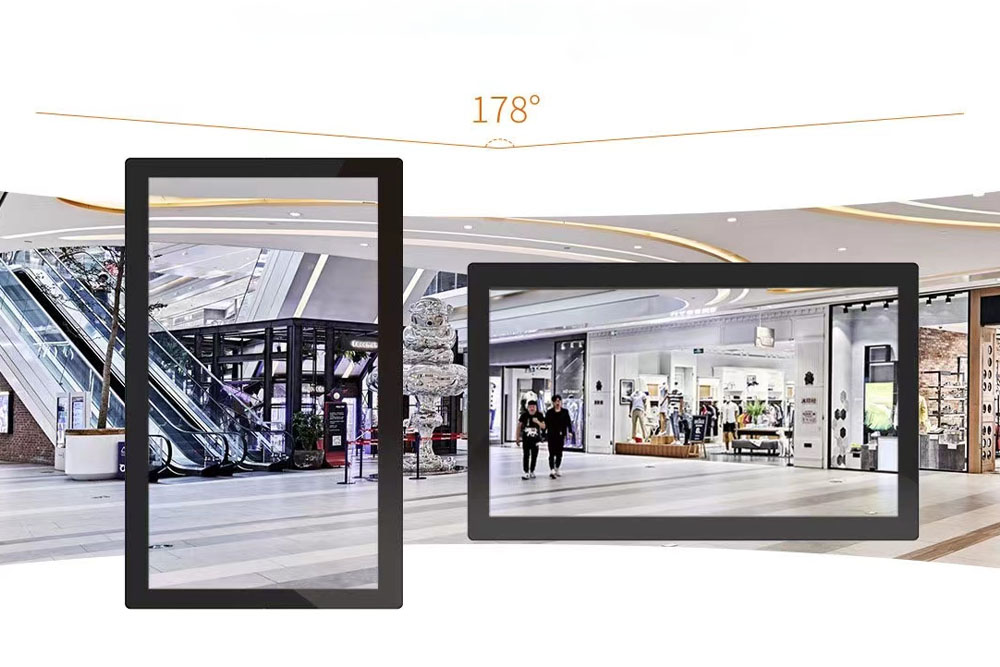

3, Large Angle of View of Digital Menu Boards
Large angle of view display high-definition pictures and video in wide view.

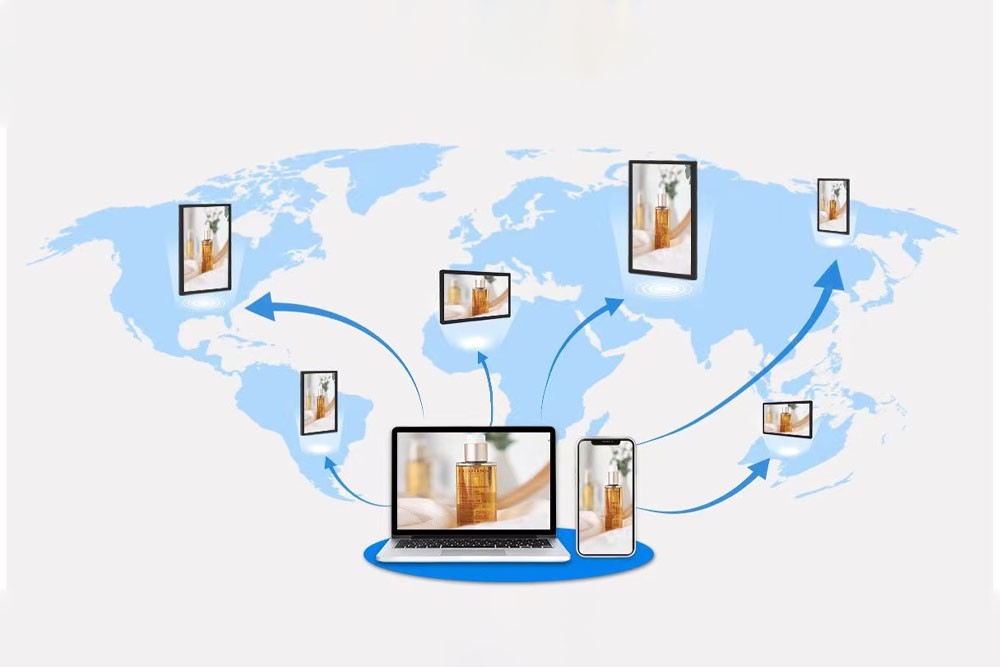

4, Digital Menu Boards Allow Remote Administration
You can publish new content including: date, weather, image, video and dynamic ads play on a loop with cloud remote publishing system.

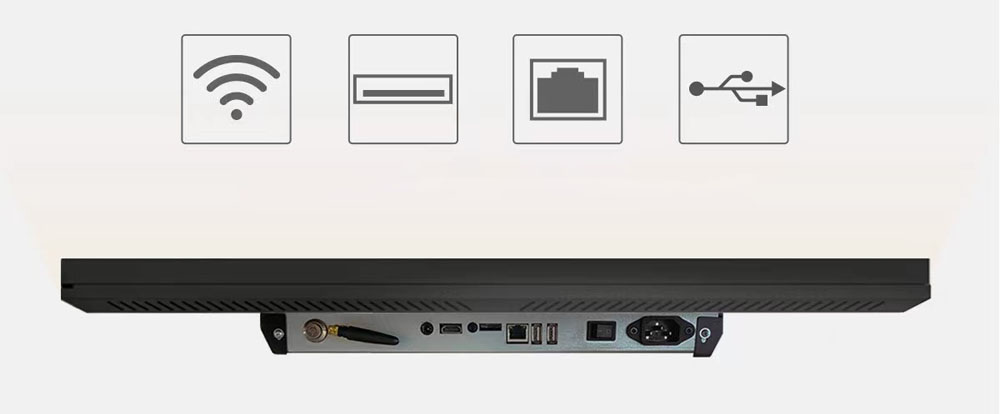

5, Hardware Interface
Menu digital signage boards can upload message by WIFI and U Disk, they have SD card interface, cable interface and USB interface.
